Customized 3D-Printed Fracture Cast for Faster Healing
YEAR
2018
INDUSTRY
Transport
SERVICES
Medical Design, Design for 3D Printing, Grasshopper scripting
CLIENT
BOLT3D
Project statment
Project statment

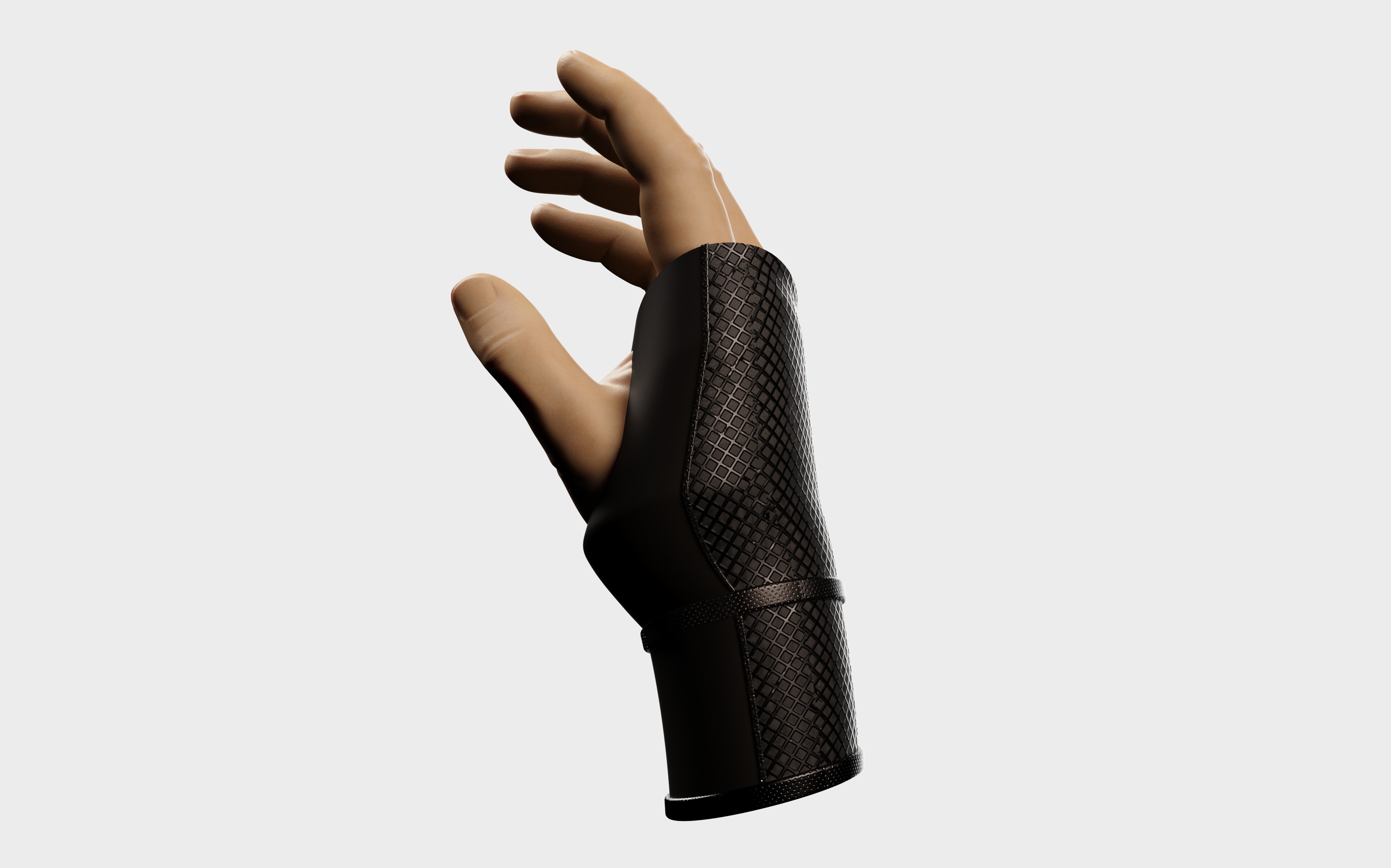

Customized 3D-printed fracture casts with optimized porosity to enhance healing and patient comfort. The design improves air circulation, accelerating recovery. Higher density is applied in fractured zones for stability, while lower density and increased porosity in other areas ensure breathability and lightweight support.
Customized 3D-printed fracture casts with optimized porosity to enhance healing and patient comfort. The design improves air circulation, accelerating recovery. Higher density is applied in fractured zones for stability, while lower density and increased porosity in other areas ensure breathability and lightweight support.
Approach
Approach

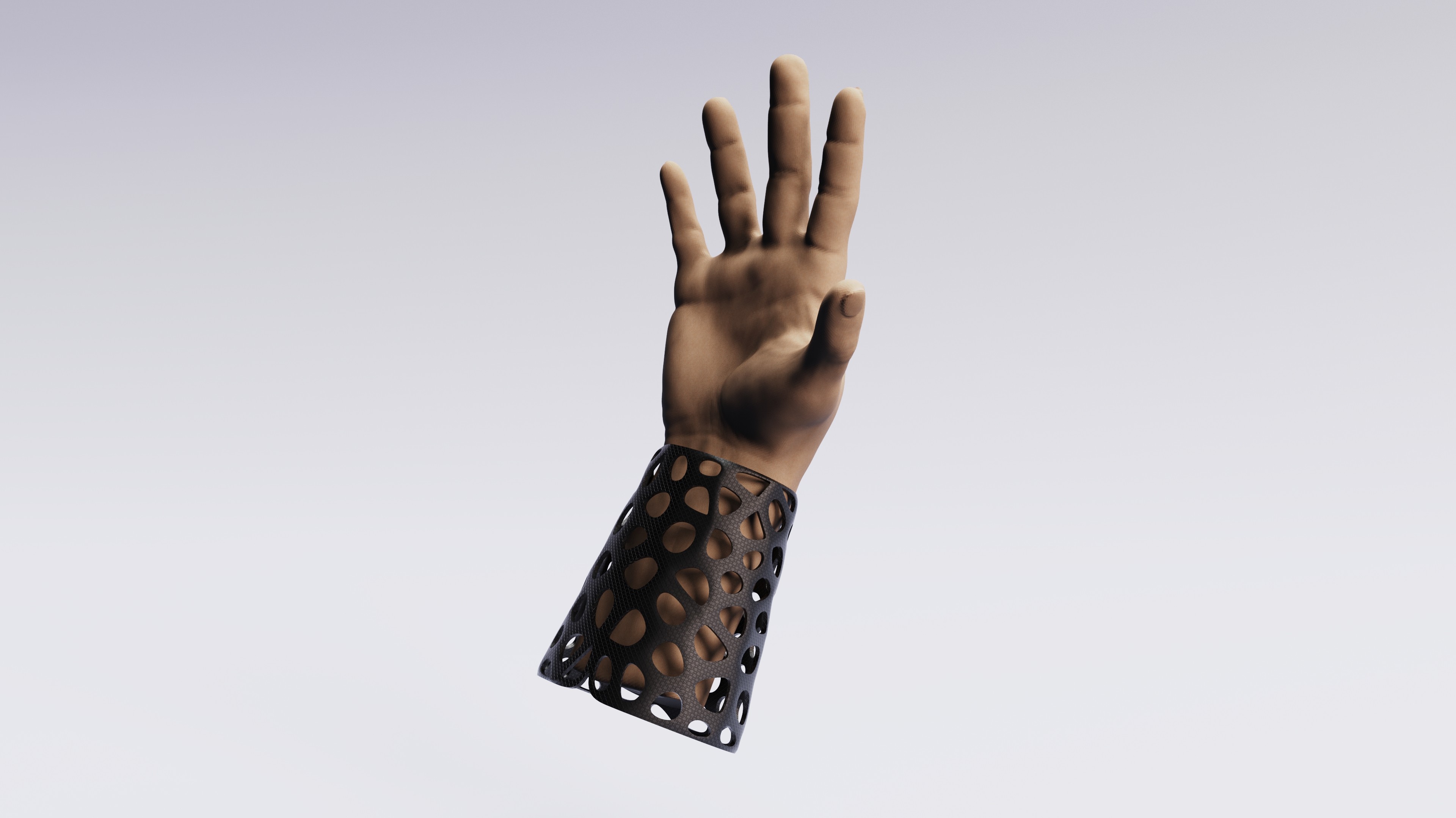

Medical-grade 3D printing resin was chosen to allow design flexibility while ensuring biocompatibility. The approach leveraged Voronoi patterns, enabling precise optimization of structural density. CT scan data was adapted and processed to generate patient-specific geometries, using Grasshopper scripting for computational design. This method facilitated mass customization, ensuring that each cast was tailored for optimal fit, support, and ventilation while maintaining an efficient production workflow.
Medical-grade 3D printing resin was chosen to allow design flexibility while ensuring biocompatibility. The approach leveraged Voronoi patterns, enabling precise optimization of structural density. CT scan data was adapted and processed to generate patient-specific geometries, using Grasshopper scripting for computational design. This method facilitated mass customization, ensuring that each cast was tailored for optimal fit, support, and ventilation while maintaining an efficient production workflow.
Our role
Our role
Development involved material selection, computational design, and digital manufacturing to create a fully customized, patient-specific solution. By integrating parametric modeling with advanced medical imaging, a highly efficient, breathable, and ergonomic cast was designed—enhancing both functionality and recovery experience.
Development involved material selection, computational design, and digital manufacturing to create a fully customized, patient-specific solution. By integrating parametric modeling with advanced medical imaging, a highly efficient, breathable, and ergonomic cast was designed—enhancing both functionality and recovery experience.
